Building a Quadrature Rotary Encoder

Today I document the saga of building an quadrature rotary encoder. I undertook the project as a way to become more familiar with electronics. My more optimistic past self thought the task relatively straight forward, but a few months of misteps, redsigns, and code rewrites have taught me otherwise. Nonetheless, it’s been quite a learning experience, and hopefully this post will provide some guidance to anyone taking on a similar project.

Basics of a Quadrature Rotary Encoder

A quadrature encoder translates rotational changes of an object into a digital signal. They have a number applications, including robotics where they are used to determine velocity and position which can be infered from the rotation of the motor shaft(s). There are a number of ways to do this, but the ways I’ve experimented with involve an encoder wheel (Figure 1), and the use of infared emitters and collectors. To keep it simple for now, lets consider only one emitter and one collector. The encoder wheel is designed to alternate the amount of infared light reaching the collector from low to high at regular intervals as it rotates. One can acheive this by either “cutting out” the black sections in Figure 1 and placing the collector on one side of the disc and the emitter on the other such that as the disc rotates it will block and unblock the collector. The other method involves taking advantage of how light colors reflect more infared light than dark colors. Thus by placing the emitter and collector on the colored side of the encoder wheel, the same effect can be achieved as the amount of infared reflected will vary from low to high, and consequently the amount reaching the collector will vary from low to high, as the encoder wheel turns. In both cases, the analog output of the collector will look something like Figure 2 which is then turned into a digital signal also show in Figure 2.

Figure 1. Single channel encoder wheel (left) and a two channel encoder wheel (right).
Figure 2. An analog wave (top) and a digital square wave (below).

From this signal, one can determine speed based upon the frequency—the higher the frequency, the higher the speed. Unfortunately, this signal doesn’t provide one critical piece of information: the direction.

Figure 3. Quardrature signal and the corresponding gray codes representing each possible state.

By adding a second emitter/collector pair, radially aligned with the first pair, and adding a second encoder track to the encoder wheel offset by one quarter cycle as in Figure 1, the signal generated by both collectors will provide the direction. Call the outer track channel A and the inner track channel B, the collectors will produce a signal like in Figure 3, known as a quadrature signal, when the encoder wheel is rotating. For any point in time, these two square waves fall into 4 possible states, which can be represented by two digit binary codes called gray codes:

  • channel A high and channel B high (11)
  • channel A high and channel B low (10)
  • channel A low and channel B high (01)
  • channel A low and channel B low (00)

When the wheel turns clockwise, it produces the sequence of gray codes: 00, 01, 11, 10, 00, 01, etc. When turned counterclockwise, it produces the same sequence but in the opposite order: 00, 10, 11, 01, 00, 10, etc. Thus the direction of rotation can be inferred from the order of the gray codes. That’s the basics of an quadrature rotary encoder.

What I’m looking for

I have a somewhat larger robotics project I’ve been considering working on (I won’t talk about the specifics until I start on it), and this encoder fits into that larger scope. In this larger project, I’m considering using a scooter motor and wheels for locomotion, and I want to build a pair of encoders to get rotational information from the scooter wheels which I can then use to determine velocity and position. The encoders will also tie into a Kangaroo motion controller, which will in turn drive a Sabertooth motor controller. For the most part, the standard quadrature output covers my basic needs; however, I have a few other features in mind such as being able to calibrate the encoders programmatically, perform error checking and error notification, and also provide some basic encoder state information via an I2C interface.

Trial and Error

Attempt 1 – Photo Interrupter

For my first attempt, I thought I’d keep things simple, and then build upon it later once I got something working. I decided to use a disruption technique by which the encoder wheel would disrupt infared transmission from an emitter to a collector as it turned, as opposed to some sort of infared reflection approach. In the spirit of keeping things simple, I built a single channel encoder wheel out of a paper plate by cutting 180 prongs/teeth out of it. I attached it to the sproket of the scooter wheel I was building the encoder for using rare earth magnets (of course, I intended to come up with a more robust solution later). With 180 teeth in the encoder wheel, I could achieve (or thought at least) a resolution of 180 pulses per revolution, which seemed conservative as encoders with over 5 times the resolution are both relatively common and cheap (e.g. this encoder on SparkFun). For the infared emitter/collector, I purchased a GP1A57HRJ00F photo interrupter from SparkFun. What made this photo interrupter ideal was that it already had the infared emitter and collector aligned with a perfect slot for the encoder wheel to pass through. It also produced a simple digital output, no analog jazz to worry about. I utilized an Arduino Uno to process the quadrature signal by polling a digital pin connected to the output of the IR collector. It simply wrote to the serial device whenever a revolution was completed.

The first issue I ran into was cutting out the teeth in the encoder wheel. I didn’t really have a great solution for this, and ended up spending a couple mind numbing hours cutting out the individual teeth one at a time. I should have just printed the encoder wheel on a transparency, which would have obviated the need to cut any teeth out at all.

Aside from the time consuming annoyance of the encoder wheel, there was also the little issue of the encoder flat out not working at all. The number of pulses recorded per revolution undercut the expected 180 by as much as 20 pulses. To make matters worse, the results were not consistent. I concluded that some of the teeth on the encoder wheel were too thin to properly block the IR. I tried reworking the wheel a few times but the results didn’t get much better. In retrospect, what I originally saw as a benifit of the GP1A57HRJ00F photo interrupter was probably a draw back as it’s digital output denied me the abiliy to adjust the collectors threshold as to what denotes an ON state versus an OFF state. I could have also addressed this issue by reducing resolution (putting fewer teeth in the encoder wheel) but I was still too naive to sacrifce resolution for the sake of getting something that at least functioned.

Attempt 2 – IR Reflection

After spending the better part of a month trying to get the disruption approach to work, I decided to switch gears and use IR reflection instead. I purchased a SEN-00241 IR emitter and collector pair to use for the sensor. I went with a single channel once again just to try and get something working. Instead of creating an encoder wheel to mount on a scooter wheel, I simply printed one out, punched a hole through it, and attached it to a pencil. I then built a relatively stable mount for it out of an old Saltine Crackers box. At this point, I just wanted to see some positive results before I went to the trouble of making something more permanent.

I used the Arduino Uno in much the same way as I did previously, except now it was reading an analog input coming from the IR collector. I set up a calibration routine where I’d rotate the wheel and then it would compute the average value from the analog input and use that as the threshold between the ON and OFF states. It would then continuoulsy poll the analog input to detect state transitions.

The main issue with relying on IR reflection is that it varies not only with the color of the surface but also the distance of that surface from the emitter/collector—the further the surface is away, the less IR light makes it back to the collector. Indeed, IR sensors like this are frequently used as proximity sensors. Consequently, in order to detect light and dark surfaces properly, the distance from the surface must be held constant. Unfortunately, the cut up paper plates I’d been using tend to warp, meaning the encoder wheel’s distance from the IR emitter/collector varies as it turns. Of course, I could have switched to a more robust material, but then I got an idea that would make such uneccessary.

Attempt 3 – Encoder Strip and Sprocket Flange

After spending more time than I care to remember fighting with encoder wheels, I realized that I didn’t really need one. The scooter wheel I’m using connects to a sprocket using a flange and that flange happens to be just wide enough for an encoder strip (Figure 4). I wrote a small Groovy script to generate the encoder strip, printed it on standard printer paper, cut it out, and then glued it with some Elmer’s stick glue to the flange. Again, I started with a single channel, and I used the same SEN-00241 IR emitter/collector pair as before. The initial results were promising. I could acurately determine when the wheel had completed a revolution (so long as I didn’t change the direction of rotation).

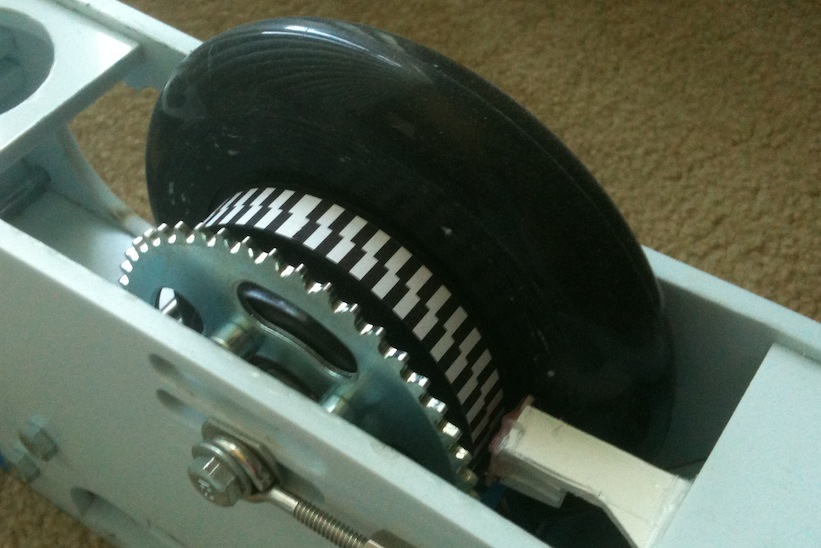

Figure 4. Encoder strip around the sprocket flange of the scooter wheel.

With this initial success, I added a second channel to the encoder strip and purchased a pair of QRE1113 Line Sensor Breakouts from SparkFun. The main advantage of these sensor breakouts is that I can use a single 6-pin header to hold both sensors keeping them perfectly aligned with each other. I updated my code to calibrate both sensors and then to poll continuously both analog inputs. I also made it print out the current gray code as the wheel rotate. Briefly experimenting with it, everything seemed fine, but then I decided to do something crazy and add error checking.

Not all sequences of gray codes are valid. For example, you can’t go from 10 to 01 or 11 to 00. When an invalid transition happens, it usually means something not good just occurred. It could be that the encoder wheel is turning too fast for the encoder to keep up, the encoder strip/wheel might be damaged, the IR sensors could be out of alignment, or something of that sort. The error checking I added detected these erroneous transitions which it found with great frequency, especially when the wheel rotated at higher speeds. Even after reducing the resolution from 184 pulses per revolution to 92, the issue persisted.

My first guess as to the source of the problem was that, as I spun the wheel faster, the vibrations caused the distance to fluctuate between the IR sensors and the encoder strip, so I built a more stable mount for the IR sensors (alright, I used foamboard and a hot glue gun, but that should have been stable enough given my setup). This had no impact on the encoders performance.

I then decided it must be noise issues with the analog signal (at the time, I didn’t have an oscilliscope), so I updated my code to use a moving average filter. Again, nothing, in fact, the moving average filter seemed to do more harm than good. I also tried a median filter that also didn’t help, but didn’t seem to make things worse either.

Okay, not noise, not vibrations, what else? Well, the Arduino likes to take its time when performing analog reads. I calculated that at the faster speeds I spun the scooter wheel at, it could only manage 10 or so analog reads per encoder state. Given that the IR sensors were likely slightly misaligned, and the calibration of the sensors probably fell a bit short of optimal, the frequency at which the analog inputs were sampled may simply not have been high enough to catch every state transition. However, I would have expected decreasing the resolution to help more than it did. Another potential issue is that the Arduino needs to charge an internal capicitor when performing an analog read, which can be problematic if there isn’t sufficent current on the inputs to charge the capacitor in a reasonable amount of time, though I didn’t really look into this much.

There are a number of ways I could have dealt with the poor analog read performance. I could have bypassed Arduino’s analogRead(..) function and its overhead. I could have sacrificed analog read percision to increase the sampling rate. I could have fixed any alignment issues with the IR sensors. I could have done all those things, but I decided there was a better way to go about getting state information from the sensors.

Attempt 4 – Encoder Strip with Interrupts

Since detecting state transitions by polling didn’t work, I decided to go the interrupt route instead. I avoided using interrupts up to this point mainly due to their rather negative impact on code complexity. Dealing with the flow of execution getting yanked away at any point, and ensuring the interrupt handlers and main loop don’t read or write global data in an inconsistent manner, is hard to manage in an elegant and simple way.

I purchased some Microchip MCP42010 digital potentiometers and TI LM339N voltage comparators from DigiKey. The analog signals from the IR sensors were fed through the voltage comparators and their output went to an interrupt on the Arduino. The digital potentiometers were used to create the reference voltage for the voltage comparators and were appropriately programmed during calibration. There were also some extensive code changes as well which I won’t go into here.

This approach generated immediate positive results. I currently have the encoder operating with a resolution of 180 pulses per revolution with no issues. There are still a number software problems to work out, and hardware wise, I still need to make a ciruit board, but the main obsticales to progress have finally been overcome.

Next Steps

Now that I have a working circuit, I need to start looking into how to turn that circuit into a circuit board. Luckily, my friend Andy recently showed me how to go about making a circuit board using a DIY photoresist method which, at least when he does it, produces some rather impressive results with a relatively low time/money investment.
